OTI PetroSmart

EasyFuel – GPS Odometer Sender

The EasyFuel unit is an independent GPS Odometer Sender (GOS) used in conjunction with a Vehicle Identification Device (VID) to measure distance traveled independently of the vehicle. The EasyFuel unit has a pre-set pulse per kilometer value eliminating the need for calibration at the time of installation or re-calibration thereafter.

With no connection to the vehicle other than to power, therefore vehicle guarantees and warranties are unaffected by the use of EasyFuel.

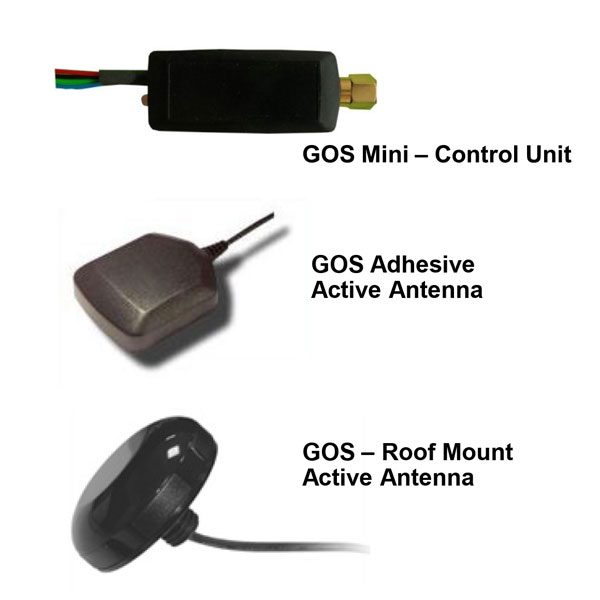

The EasyFuel GPS odometer sender unit is used with one of the following EasyFuel Antennas:

Roof Mount EasyFuel Antenna:
 Buses, Trucks

Adhesive Mount GOS Antenna:
Sedans, Light Delivery Vehicles, Motor Cycles.

GPS Odometer Sender (GOS)
GPS Odometer Sender (GOS)

EasyFuel GPS Odometer Sender accurately records distance travelled without connecting to vehicle OBD

  • Uniform solution for all vehicle models
  • Small profile permits in-loom installation
  • No connection to sensitive vehicle electronics = no warranty issues
  • Measures true distance traveled, independently of the vehicle
  • Fixed PPK value results in unit being calibration and re-calibration free
  • Proprietary compensation algorithm provides distance correction in the event of satellite loss
  • Two road speed pulse outputs provided. One for the VID and the other for the OBC to ensure uniformity in readings recorded on the VID and OBC
  • EasyFuel antennas provided for both sill and roof mounting

OBD vs EasyFuel-derived Odometer Values

OTI’s EasyFuel approach has numerous benefits, compared to connecting directly to the vehicle OBD.

  • VID with OBD interface, besides having a price premium, requires permanent interface with vehicle OBD plug, which may result in warranty issues.
  • This plug must be removed at time of vehicle servicing – and there is no guarantee it will be re-inserted on completion.
  • In consumer vehicles, the OBD plug is often alongside the steering column, which can be very unsightly if the OBD plug is permanently connected.
  • VID with OBD interface provides vehicle-generated odometer value – value influenced by vehicle parameters and road conditions. May introduce consumption error by up to 3% when compared to EasyFuel generated odometer values.
  • Lack of industry standards. There are two types of vehicle OBD outputs. Those that provide odometer reading and those that provide a pulse output. High maintenance to ensure conformity between vehicle and VID odometer values.
